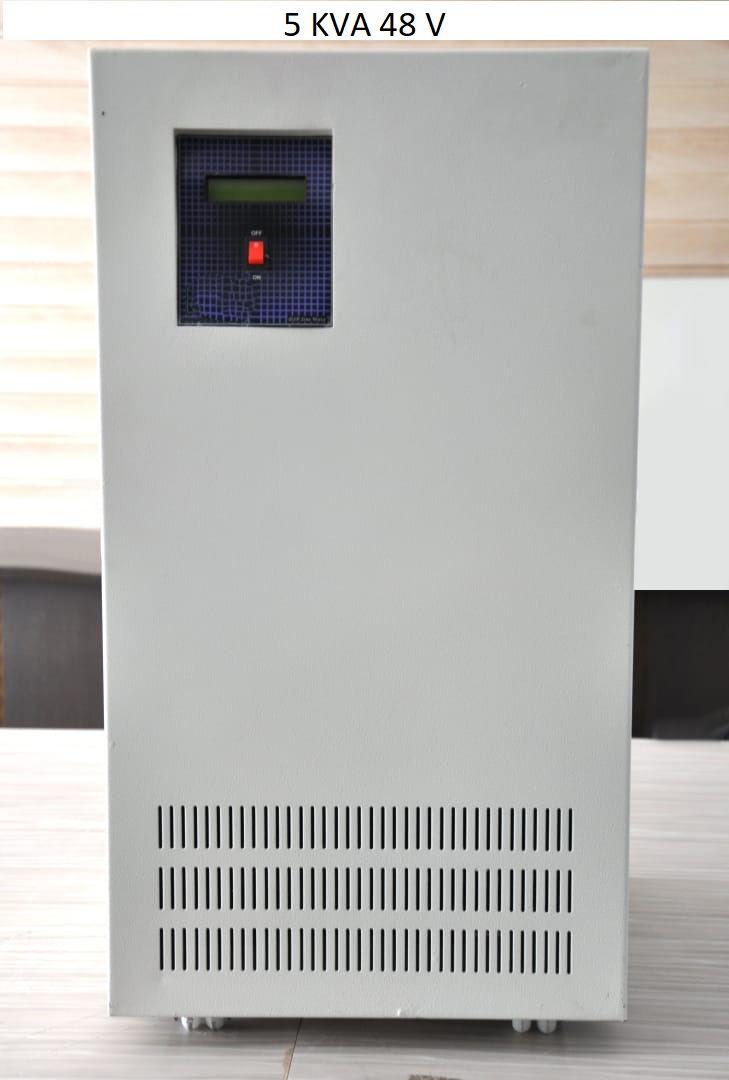

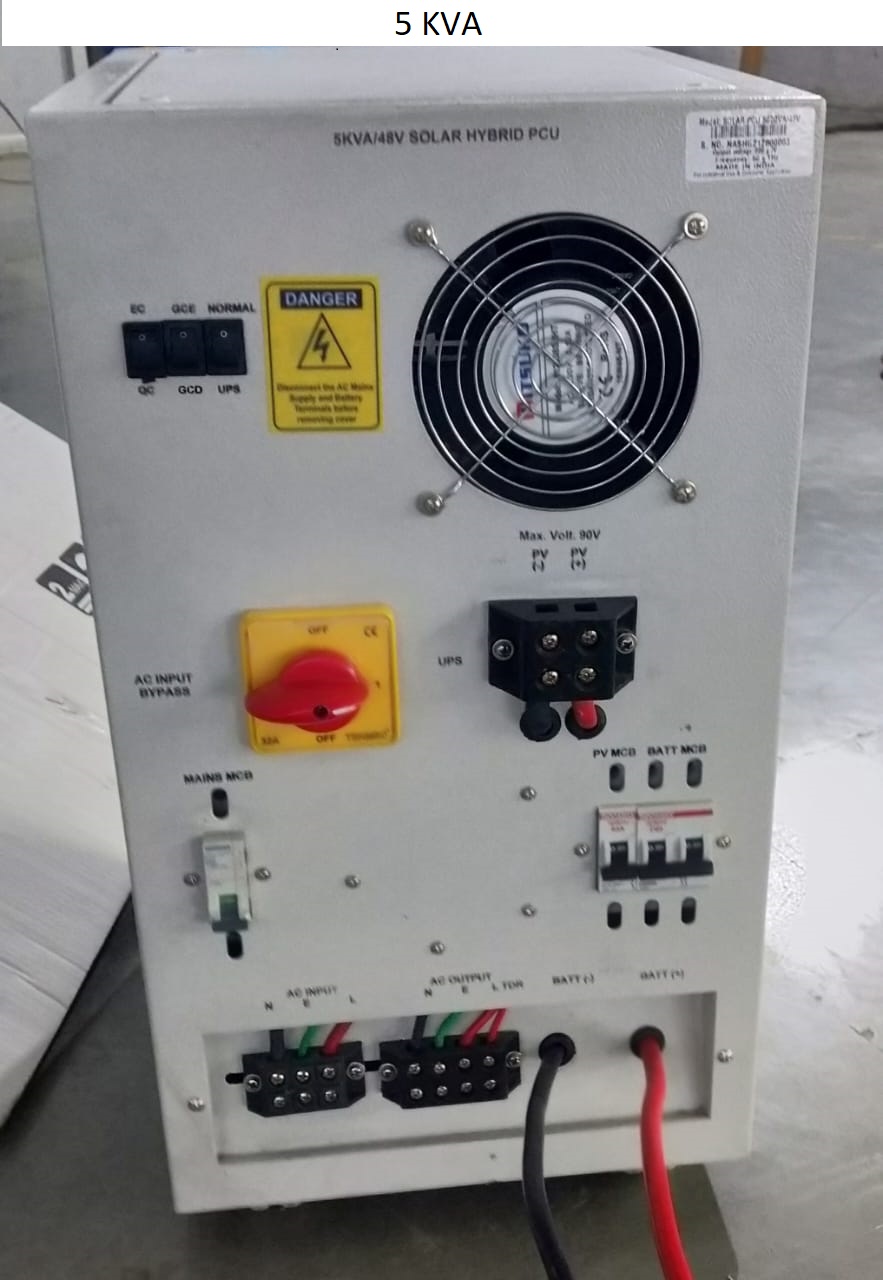

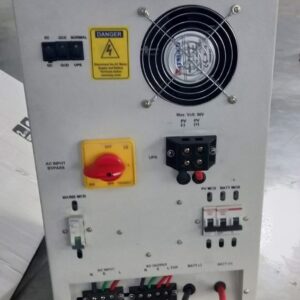

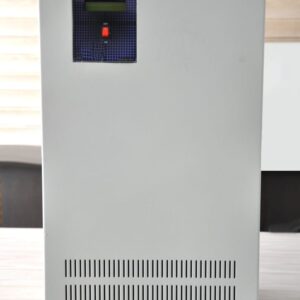

Solar Off-Grid PWM Inverter

Solar Off-GridInverter (In-build PWM Charge Controller)

Solar Inverter is a complete solar power integrated system that is based on the most advanced technology available today for developing both solar and inverter systems. SPCU has its own inbuilt Solar Inverter, Grid Charger as well as Solar Charge Controller. It has an in-built logic that is in line with our commitment of clean and green power, as it gives preference to Solar Power over Grid/DG power.

PWM Solar Off-Grid Inverter
Solar Off-Grid PWM Inverter – LKVA
System Rating 700VA/12V 925VA/12V 1100VA/12V 1500VA/12V 1600VA/24V 2000VA/24V 2500VA/24V 3000VA/24V
Max Solar Array Power (Wp) 500 600 600 1000 1320 1650 2200 2200
Solar Off-Grid PWM Inverter
Model Name 3KVA/36V 2.5KVA/48V 3.5KVA/48V 5KVA/48V 5KVA/96V 7.5KVA/120V 10VA/120V 10VA/192V
Max Solar Array Power (Wp) 2500 2500 3500 4000 5000 7500 7500 10000
Get a quote
    • Intelligent decision making capability on the basis of continuous load monitoring to select the Mains/Solar Power /Battery/Solar+Battery to drive the load.
    • LCD display for better system information.
    • DSP based design with absolute and stable sine wave output voltage & frequency.
    • State of art MOSFET based PWM technology with greater efficiency at lower cost with dynamic stability.
    • 2 Modes for charging: Economy Mode and Quick Charging Mode.
    • Deep discharge battery charging from mains as well as solar.
    • No humming Noise (Silent UPS)
    • Selector switch for UPS mode / Normal mode.
    • Can work as normal inverter if solar panels are not installed
